Inside Tornado
|

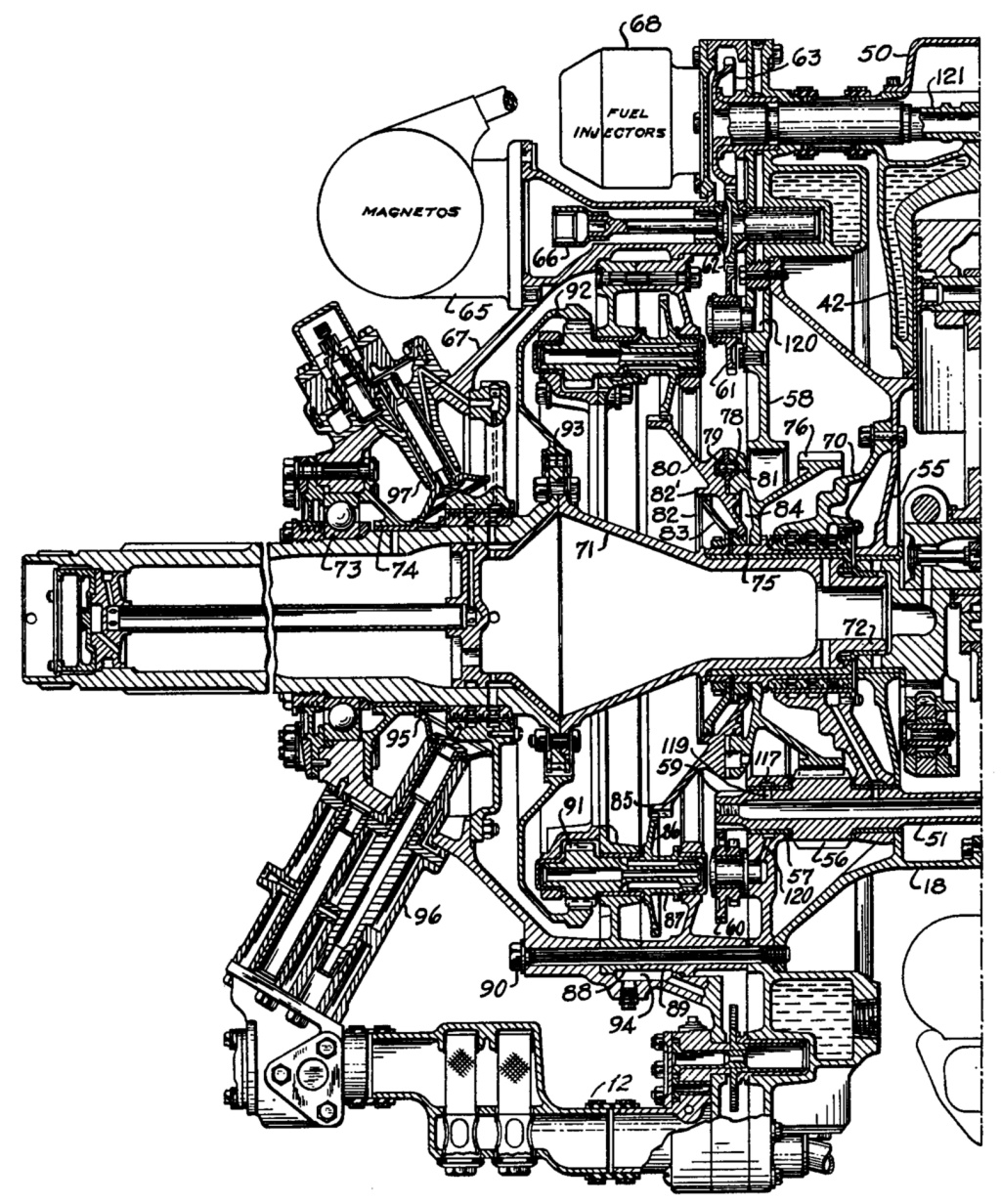

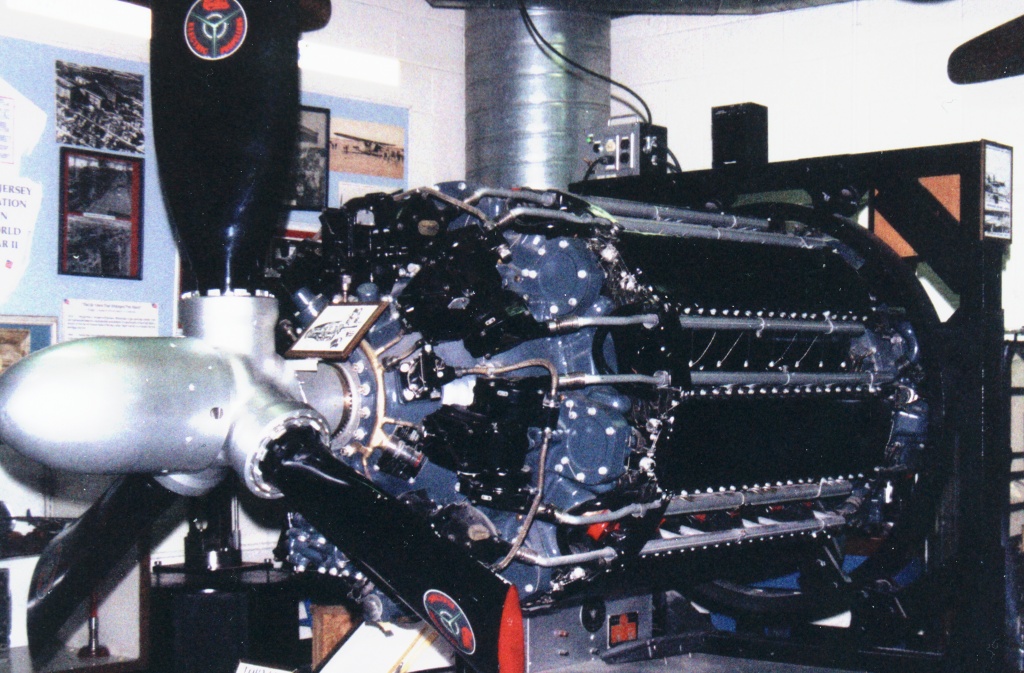

Technical Details, Photographs and Drawings of the Tornado Engine. |
|
|

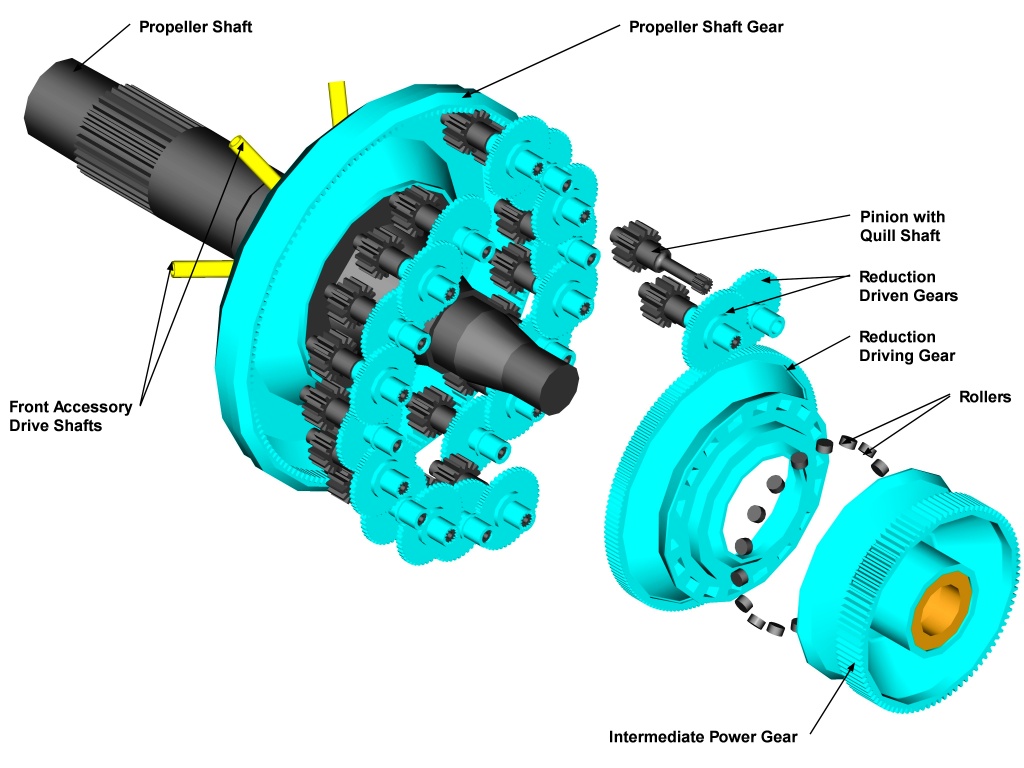

Color renderings from a detailed CAD model of the Tornado engine provide insight into its unique features. |
|
|

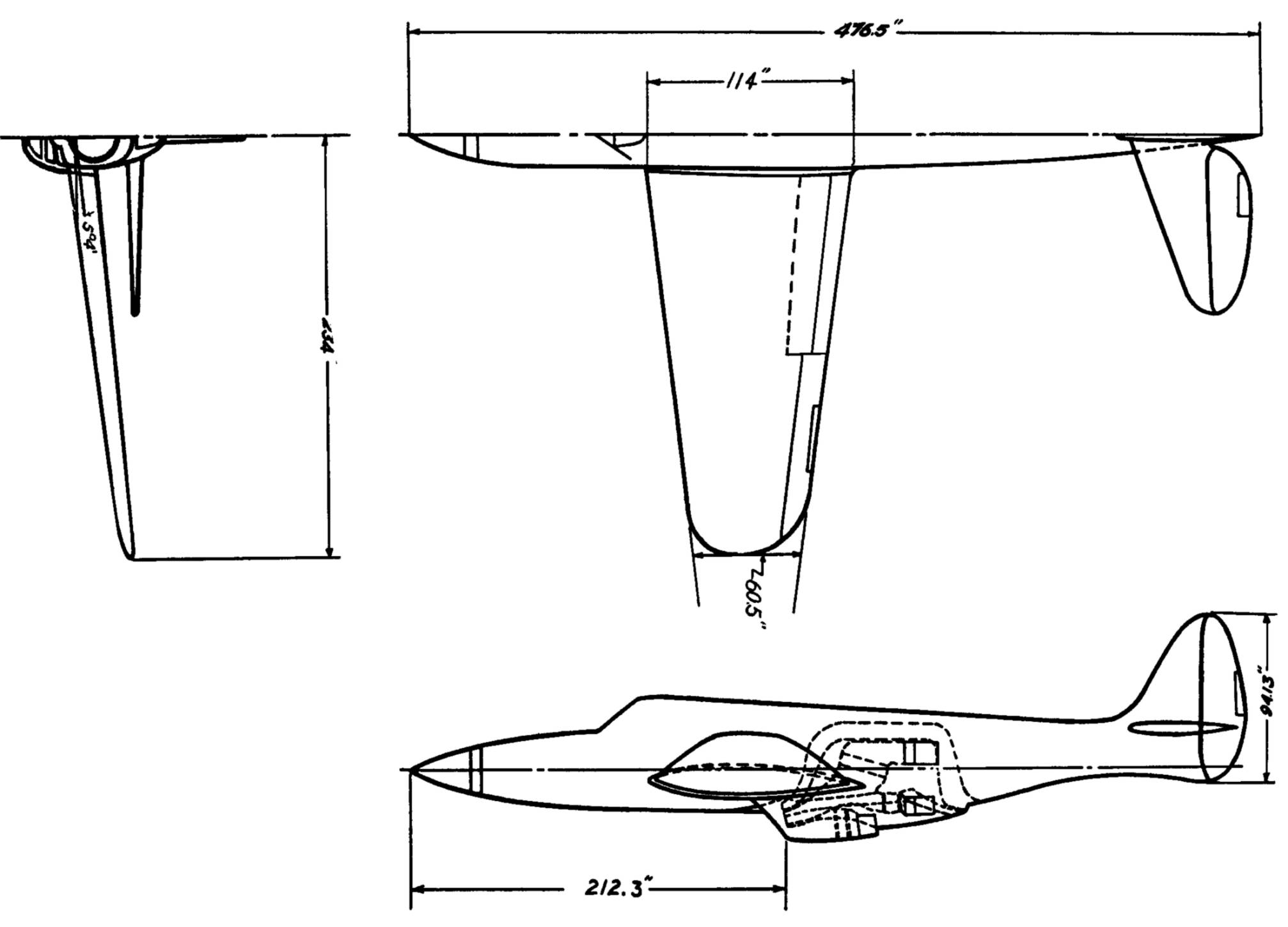

Tornado is filled with previously unpublished photographs, drawings, and technical details of the Hughes D-2, Lockheed XP-58, and Republic XP-69 aircraft. |
 |
 |

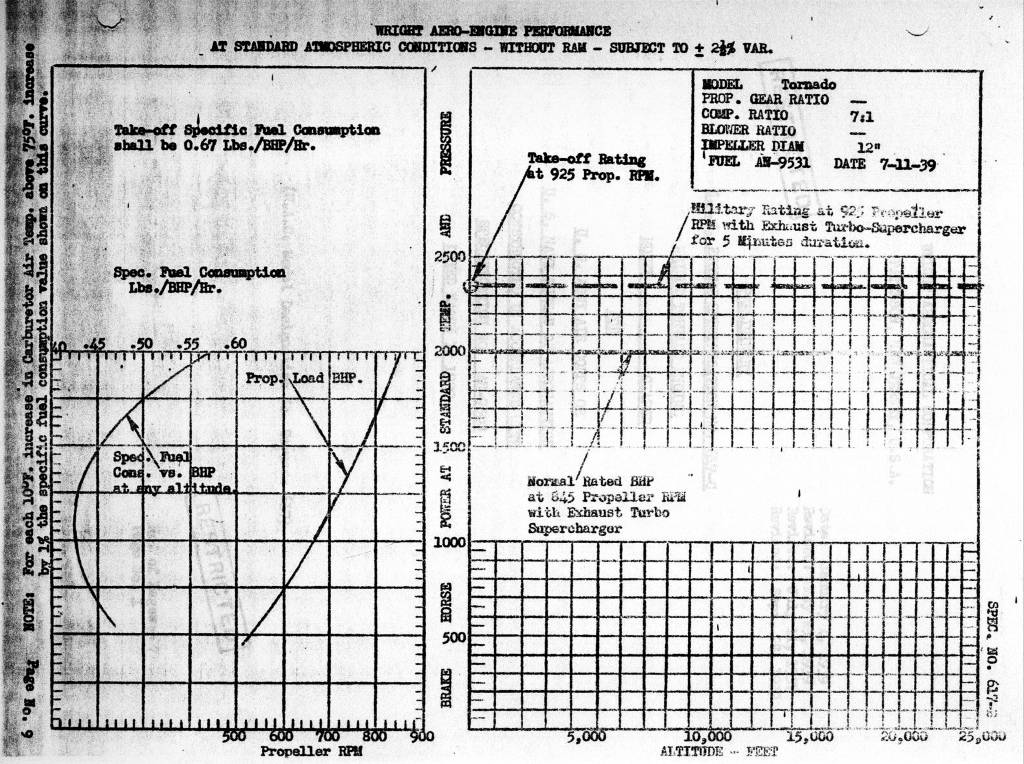

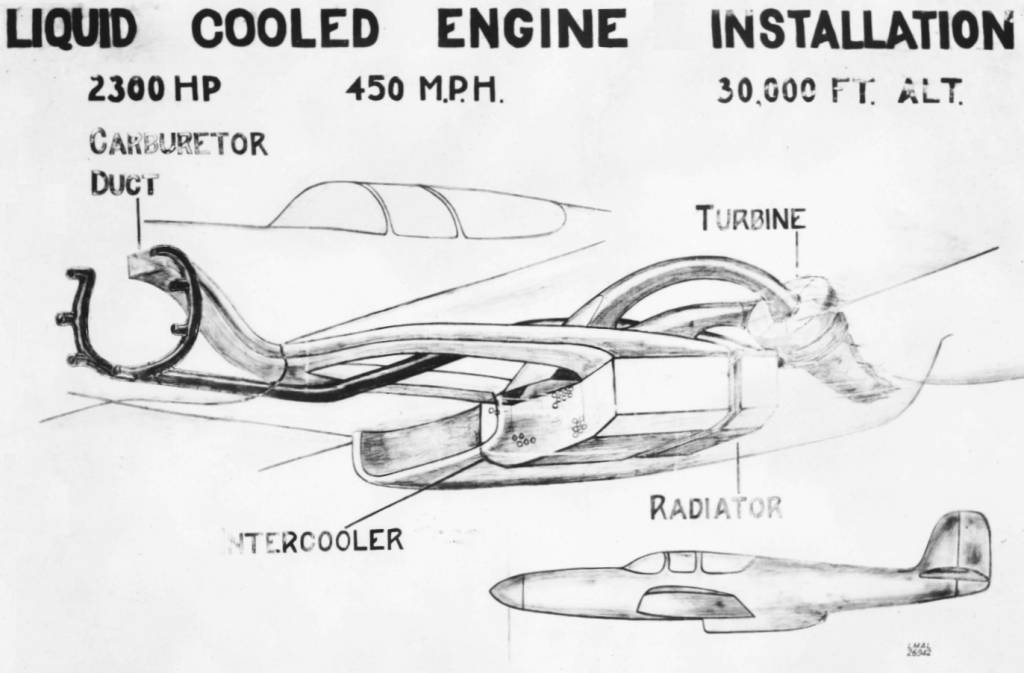

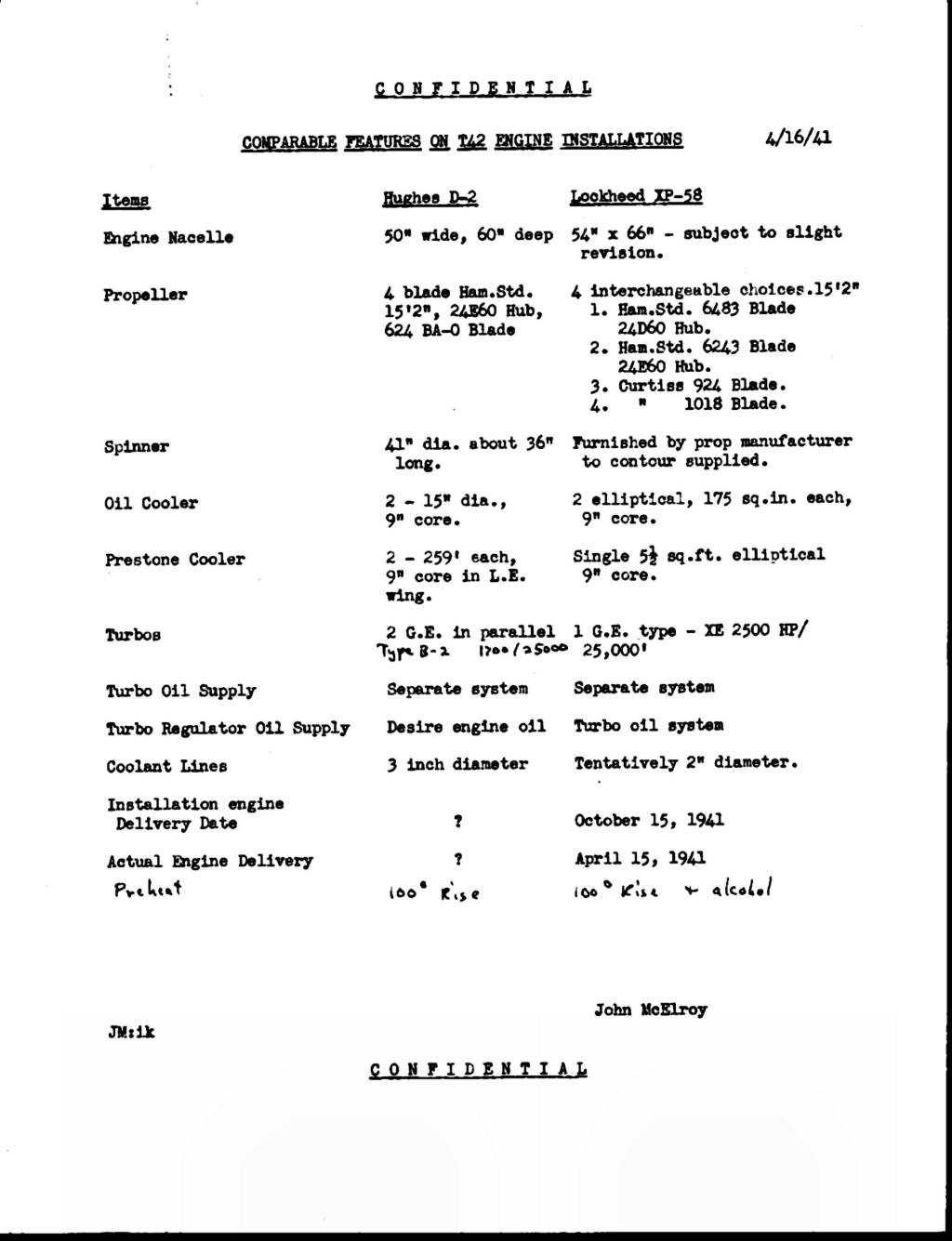

Specifications, Design Studies, Test Reports, and Correspondence |
 |
|
Tornado has coverage of the people, politics and intrigue with both engine and aircraft development programs. Biographical material on the engineers and designers who created the Tornado. Interviews with those who tested the engine during its development and restored the only remaining example. |
|
| Tornado: Wright Aero's Last Liquid-Cooled Piston Engine
ISBN: 0-9710847-0-X 8 1/2" x 11 " e-book Second Edition B/W and color photographs, line drawings 222 pages, 23.6 MB PDF Price: US $14.95 |
These following title is available only as a digital download that requires manual intervention. Once you click the "Buy Now" button, we will process your order and email you a download link that will be vaild for 24 hours. Please allow 48 hours for processing. |
Raymond Zanella Kindly Contributed the Following Tornado Restoration Images
 |
 |
 |
 |

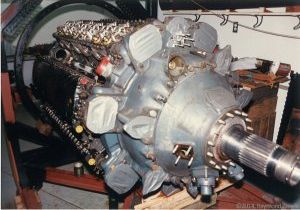

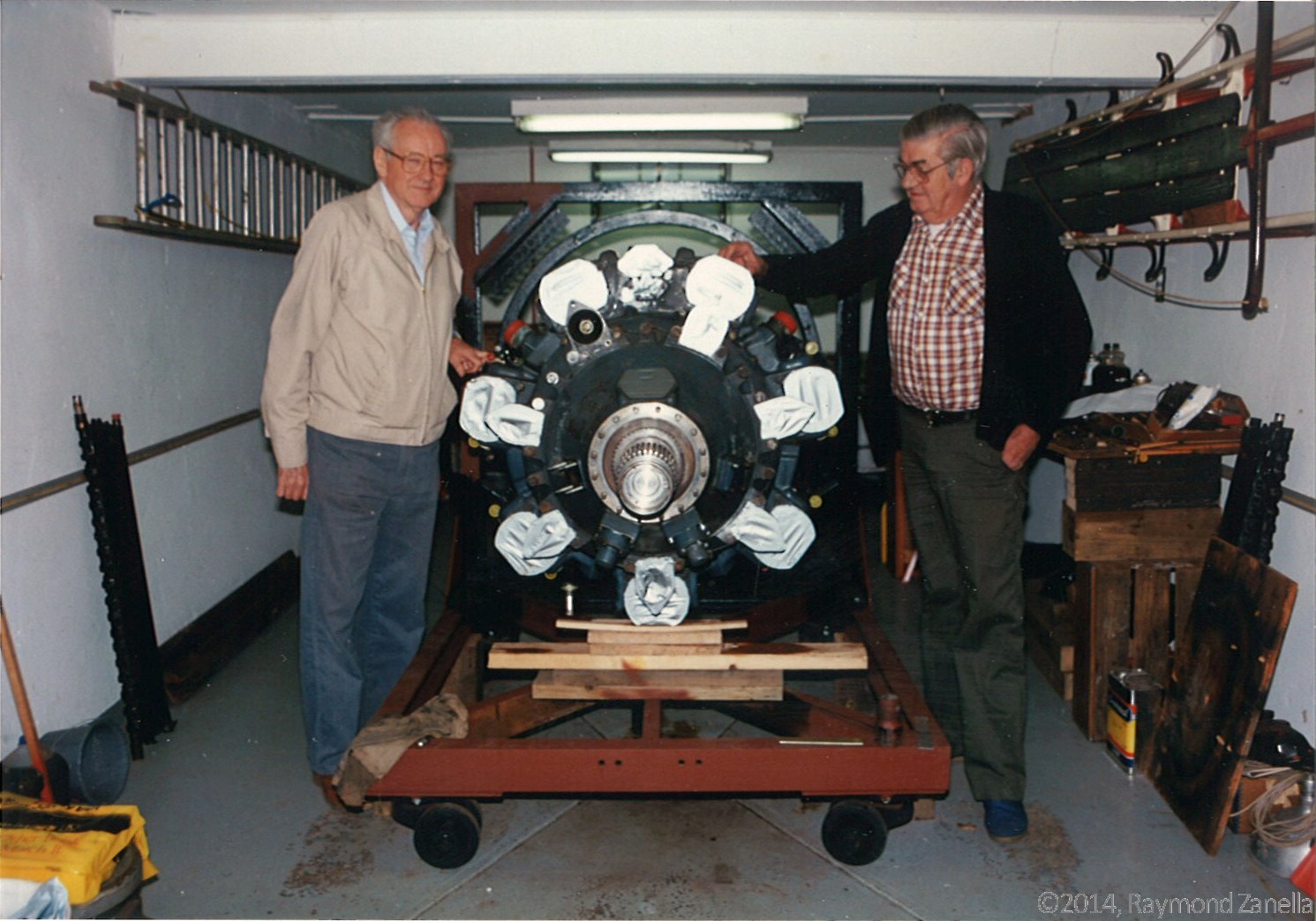

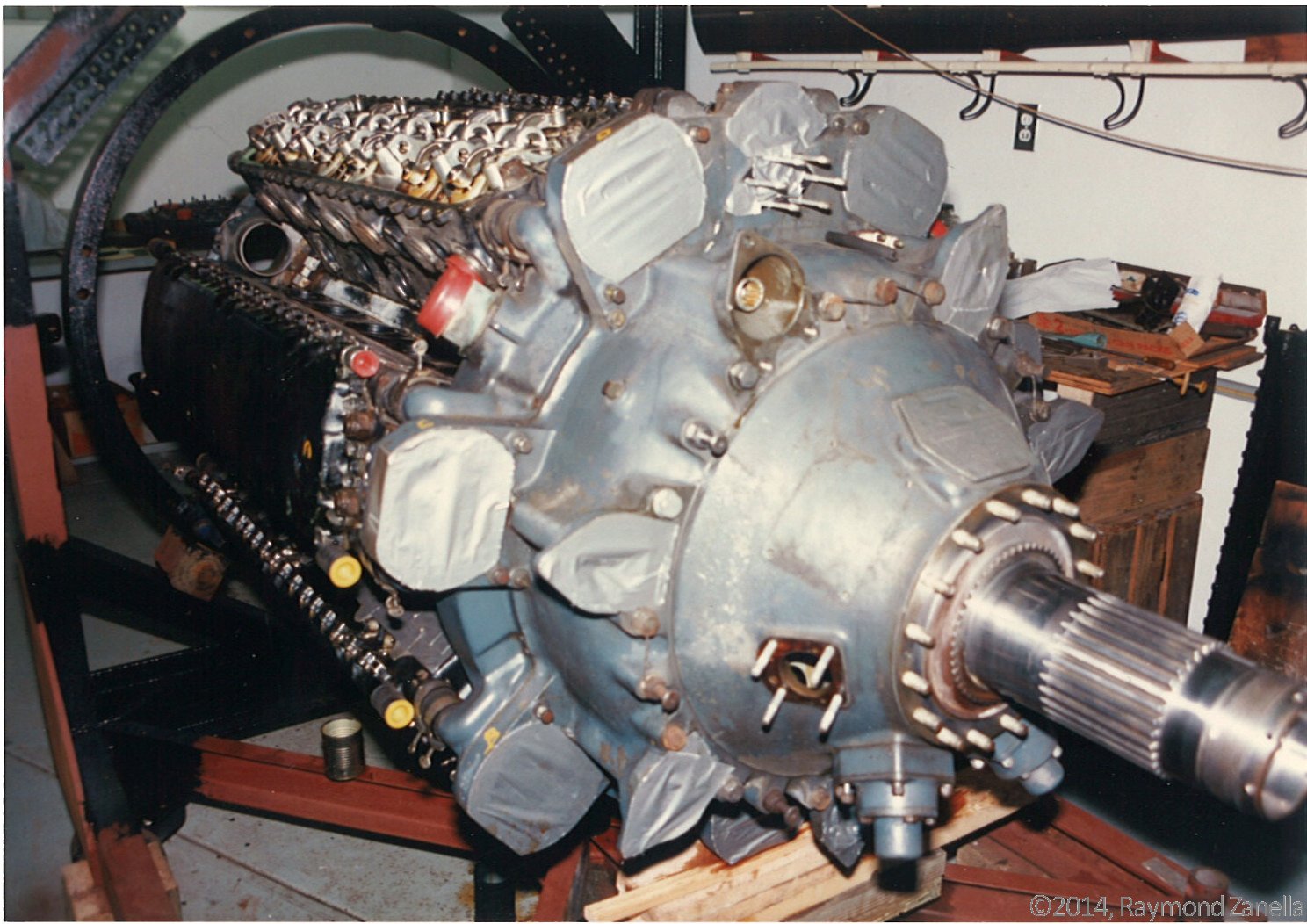

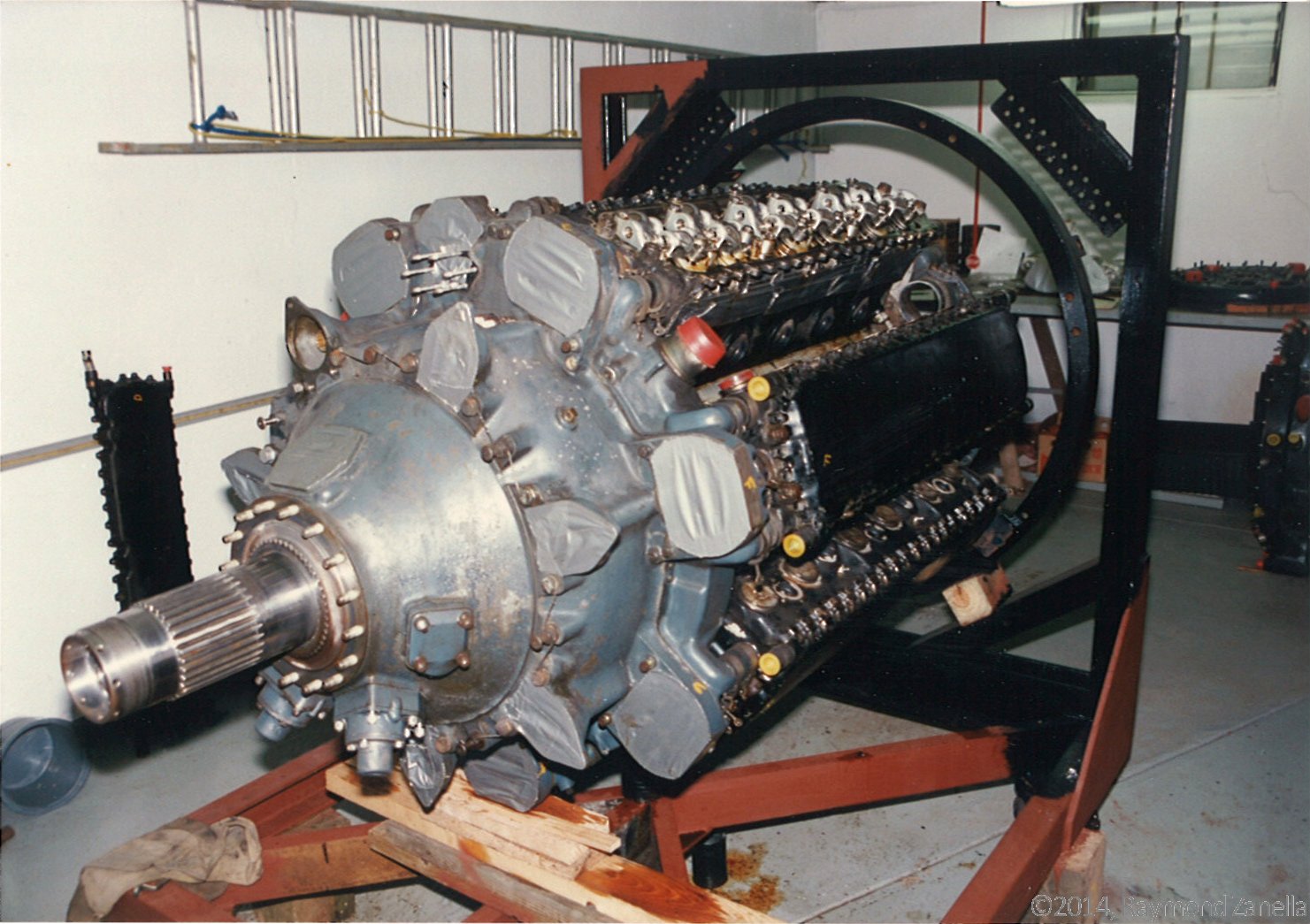

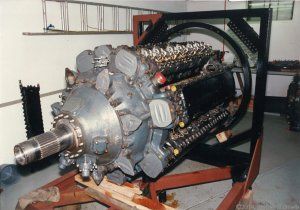

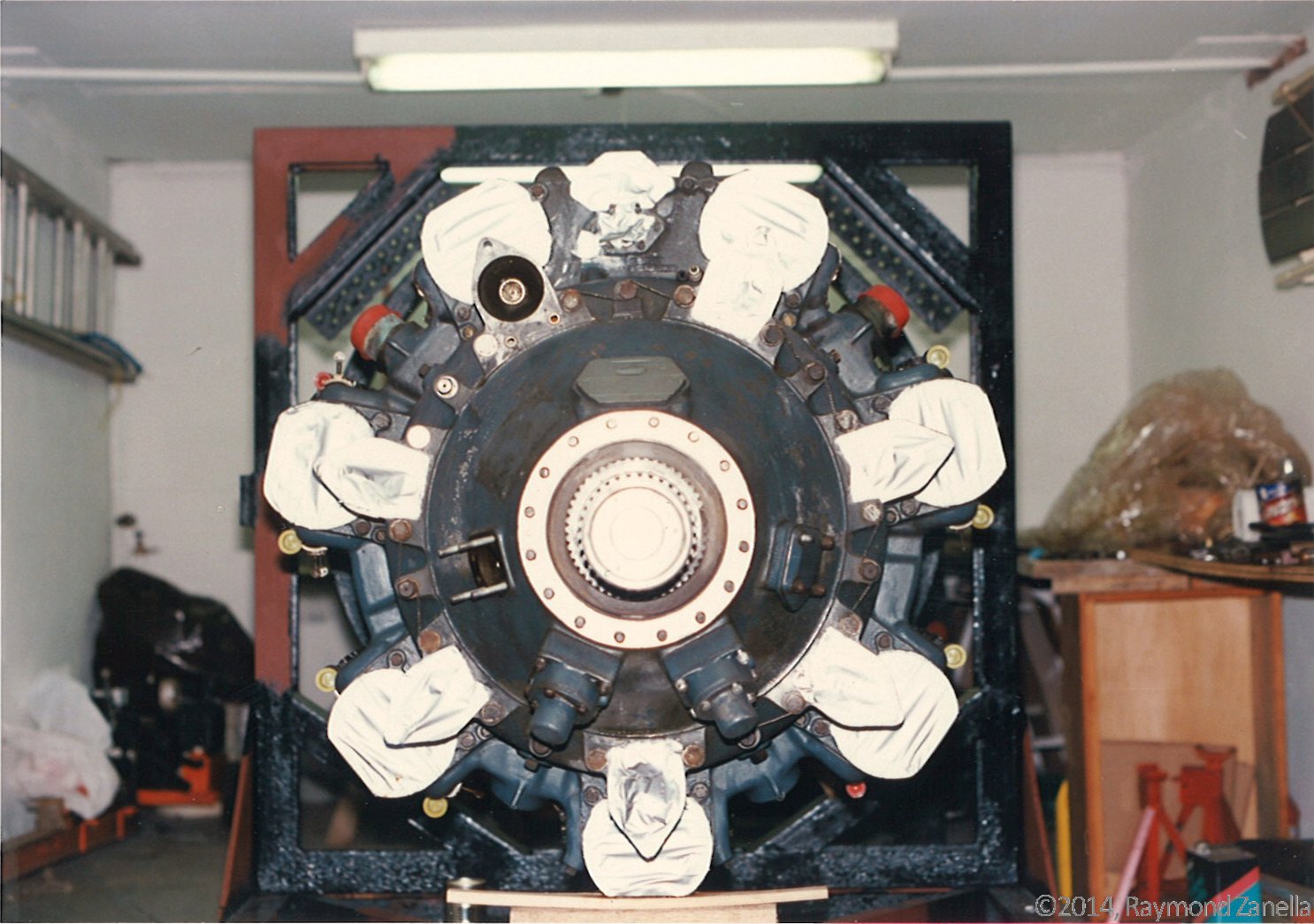

| Tornado Restorers Jerry Abbamont (left) and Kenny Bell stand beside the Tornado during restoration. | Front Section Being Prepared for Painting. The engine is upside down in this image. At the nose case top is a mounting pad for the fore oil scavenge pump; at the left is the propeller governor mounting pad. The remaining pads are covers for other accessory drives. | Two Mounting Pad Circles Aft of the Nose Case. The triangular fore ones are for the seven magnetos; the larger ones aft are camshaft drive gear covers. | One of the magneto drives (above right of the image center) has not yet been masked. The drive shaft and three threaded holes for mounting bolts are visible. |
 |
 |
 |
 |

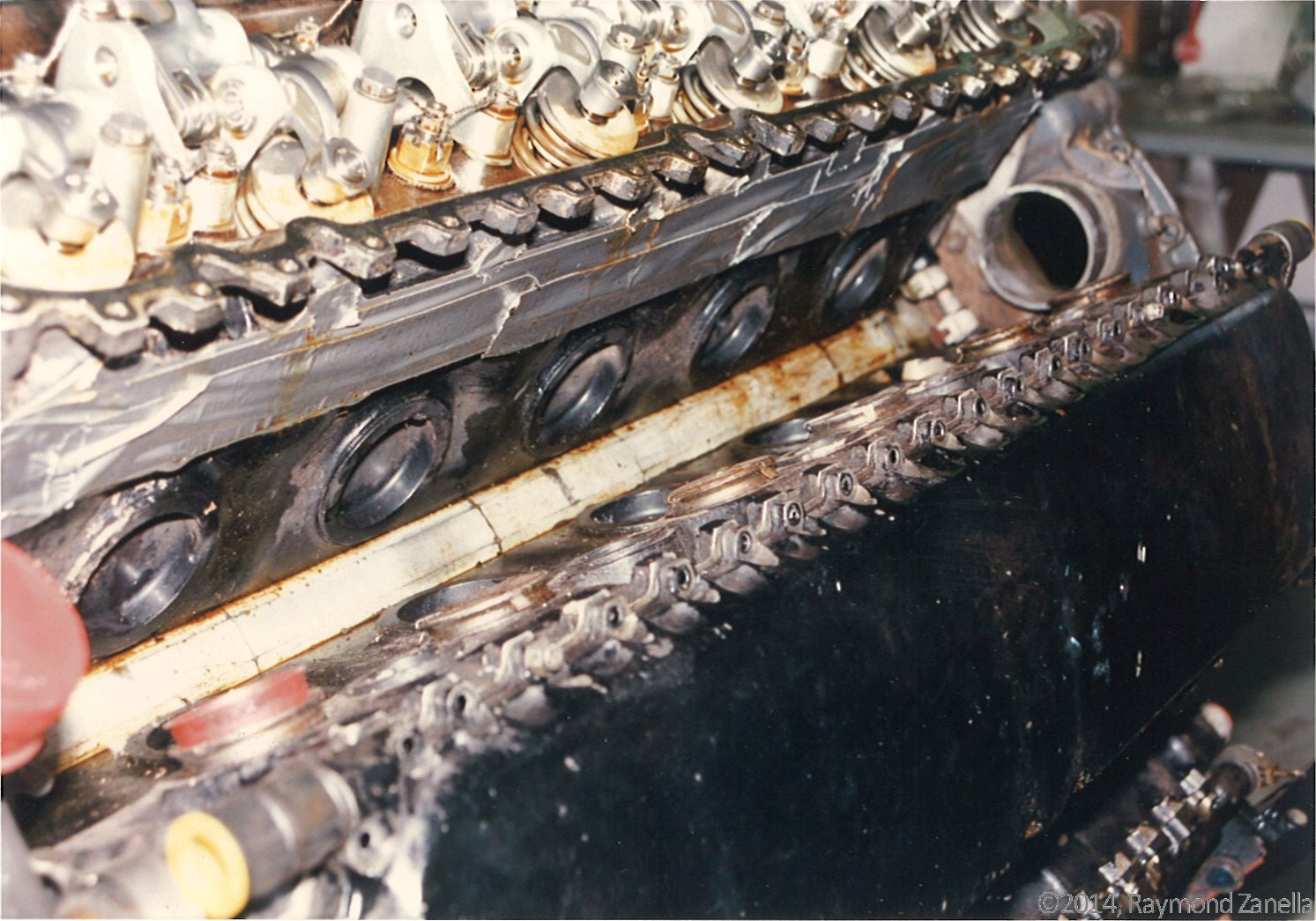

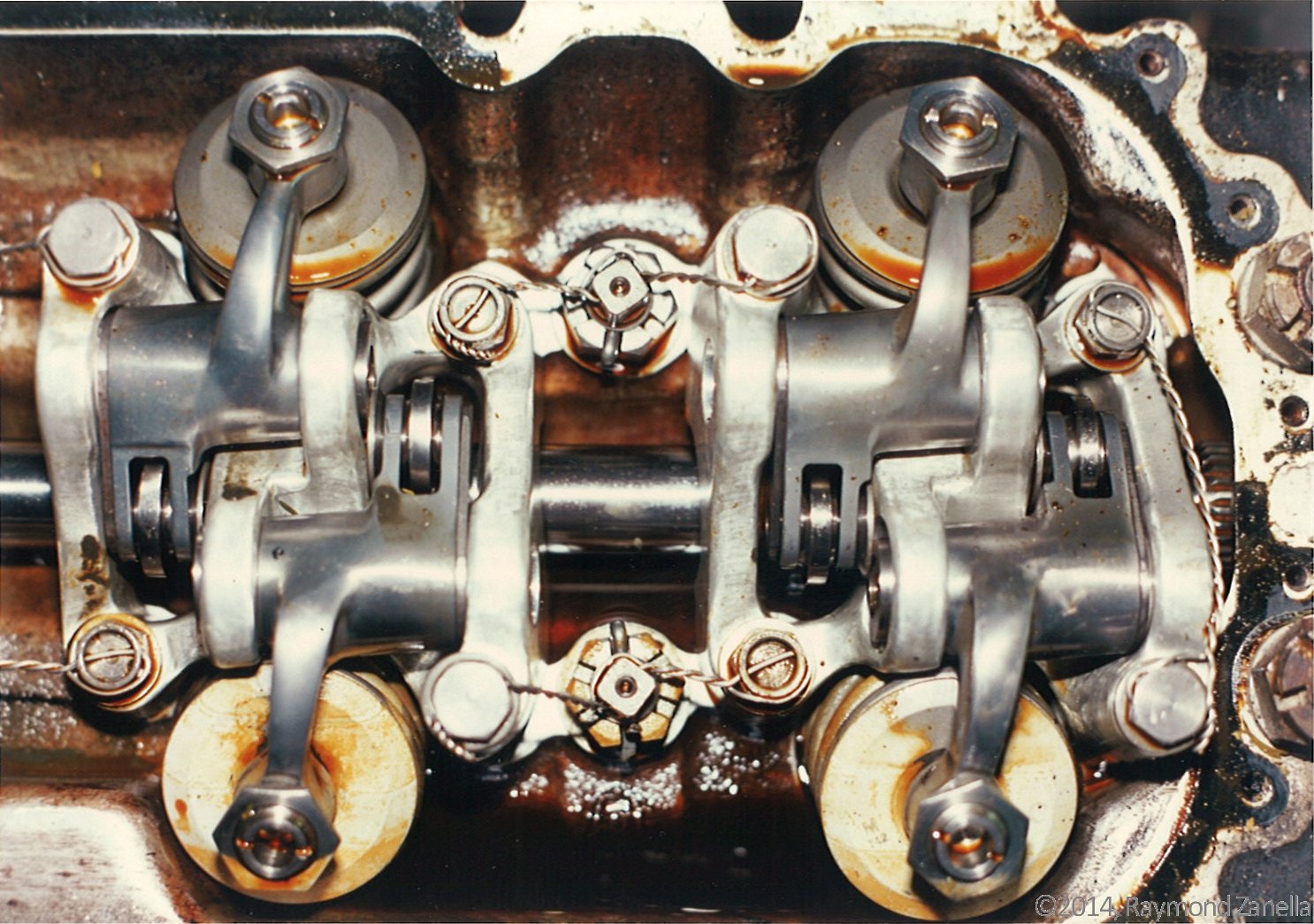

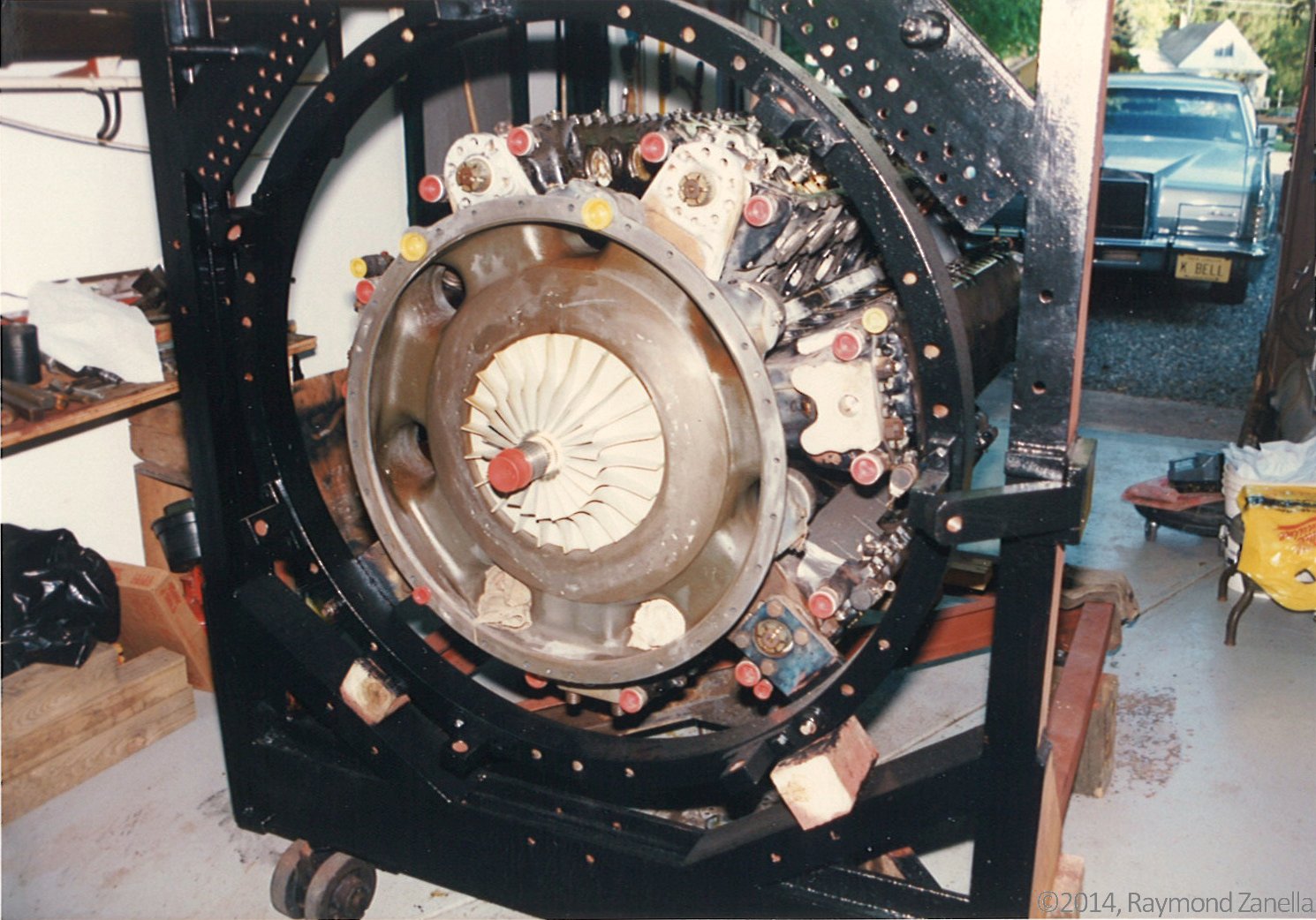

| In this view of the vee between cylinder banks, the masked-off exhaust flange is visible along one wall (top), and intake ports are visible on the other (bottom). The large aft hole leads to the supercharger. Spark plugs, ignition harness, cooling air blast tubes, an intake manifold and an exhaust manifold, along with their attaching hardware, had to be fitted into this very tight space. This same scheme was used for all seven cylinder banks. | Camshaft, Rocker Arms, and Valves for Two Cylinders. Each of the 84 valves had to be adjusted manually, which required removal and replacement of 7 valve covers, each with 50 lock-wired fasteners and a gasket. | The rear accessory case has been removed, exposing the supercharger impeller. | Supercharger impeller and passages to the seven intake manifolds. |
 |
 |
 |
 |

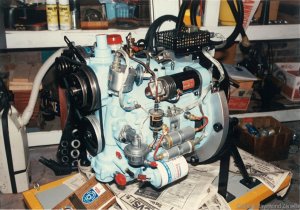

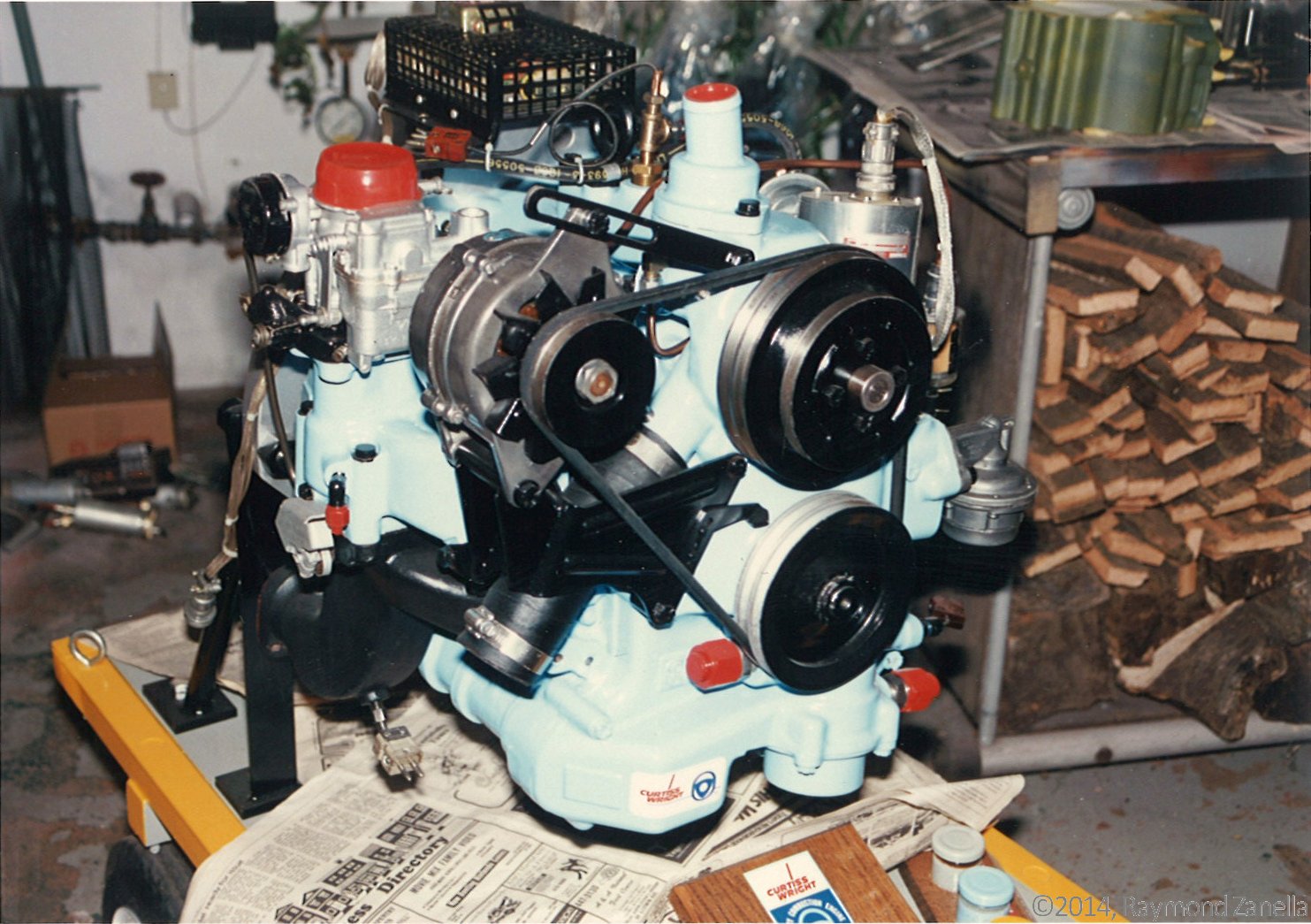

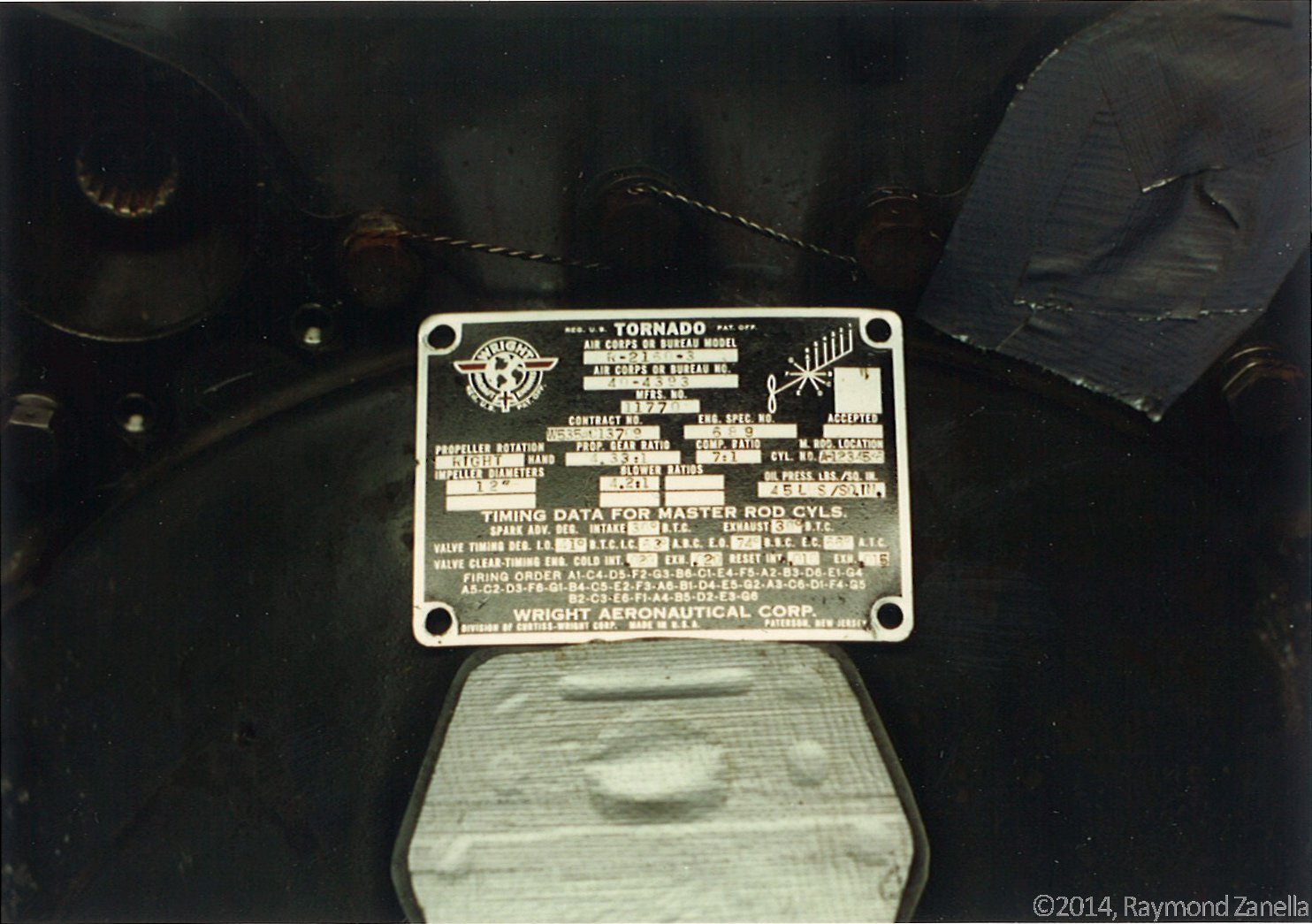

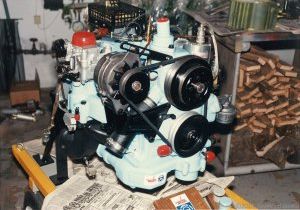

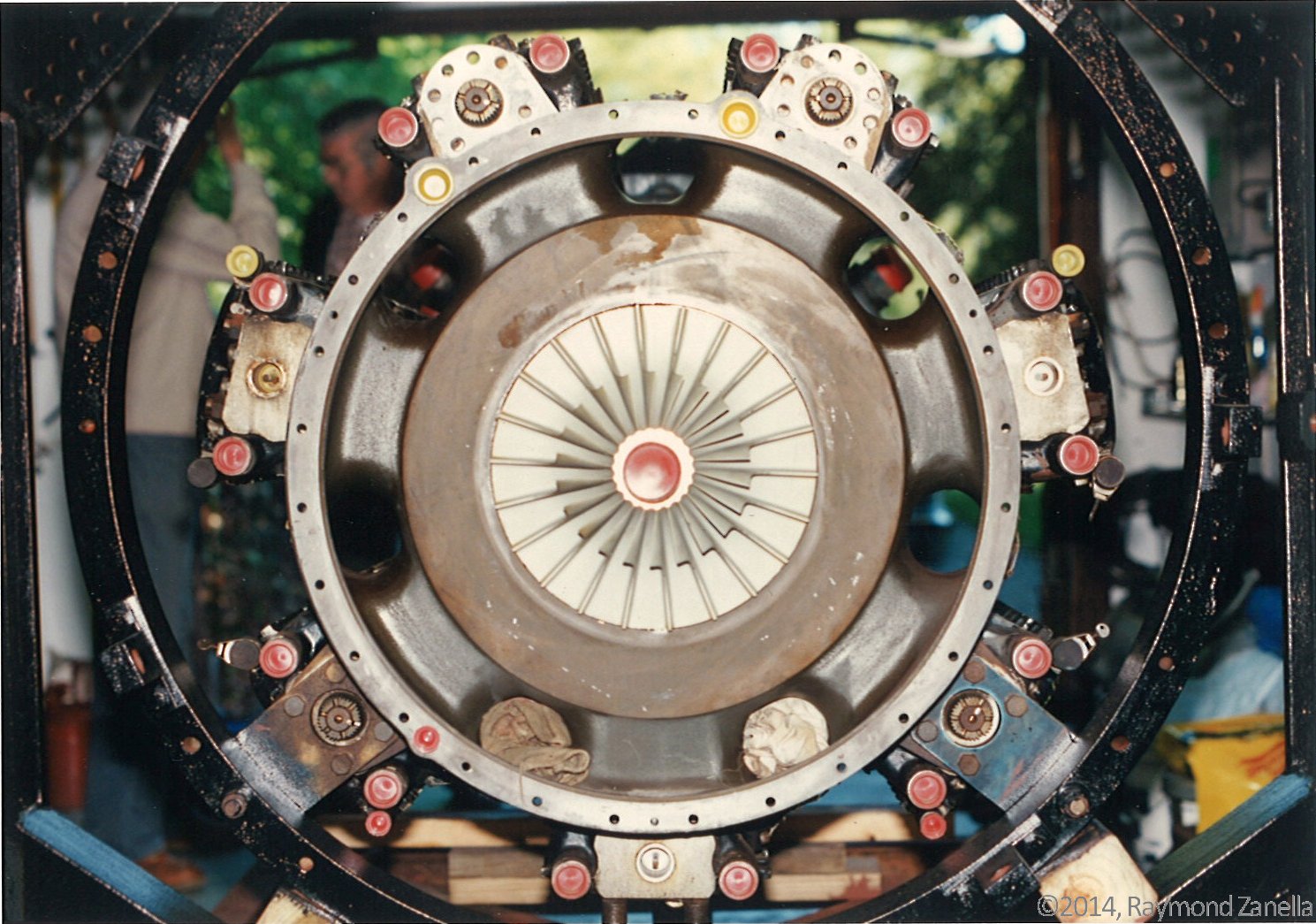

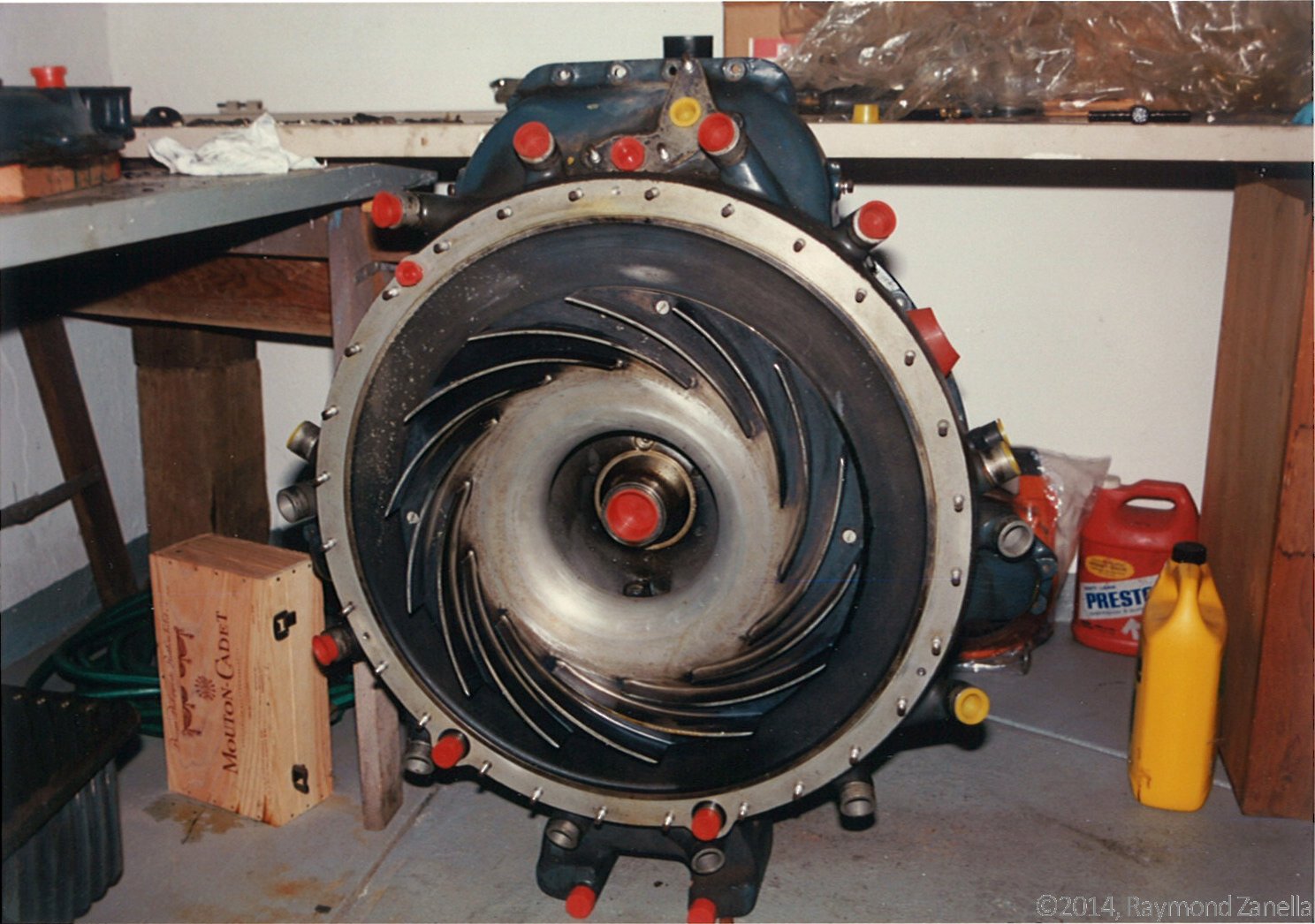

| Accessory Case Showing the Supercharger Diffuser | Tornado Data Plate | The Curtiss-Wright RC-260-Y8 rotary combustion engine that the New Jersey Aviation Hall of Fame and Museum traded to the New England Air Museum for the Tornado. | Curtiss-Wright RC-260-Y8 |
Free

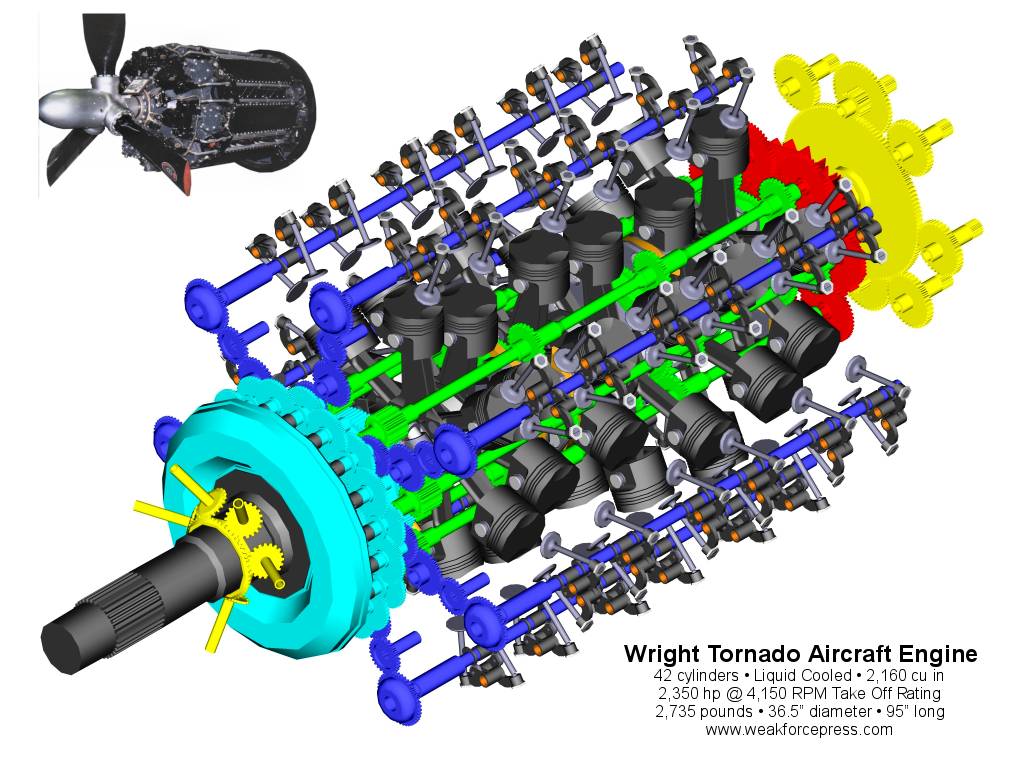

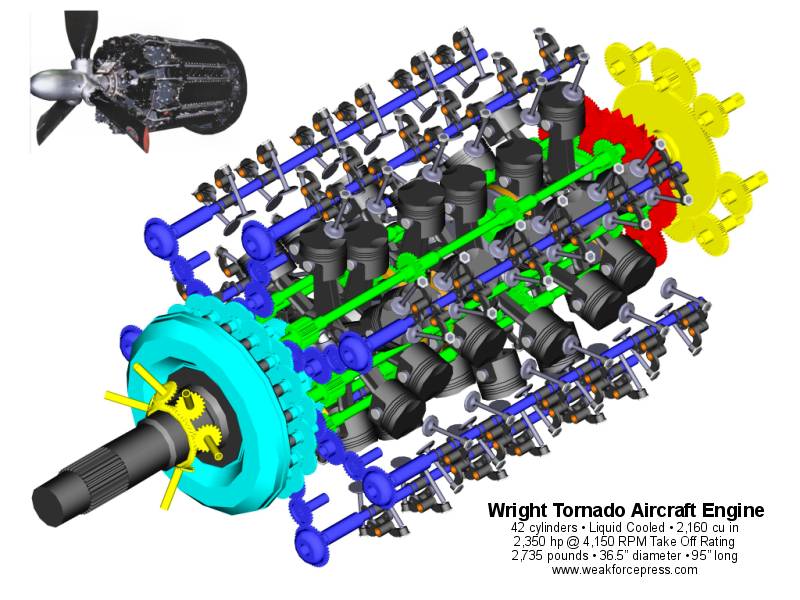

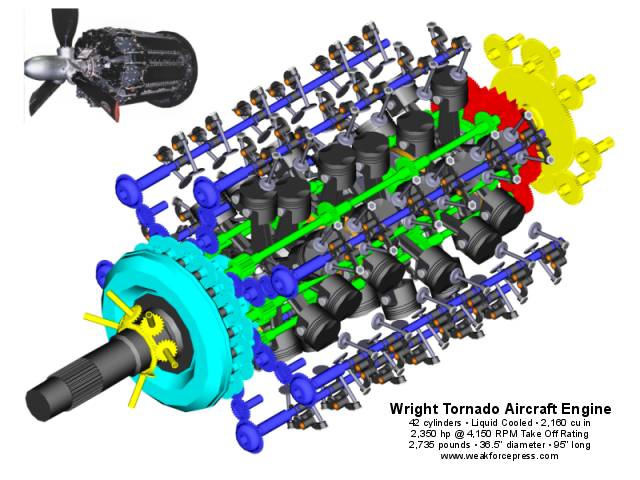

Tornado Wallpaper
